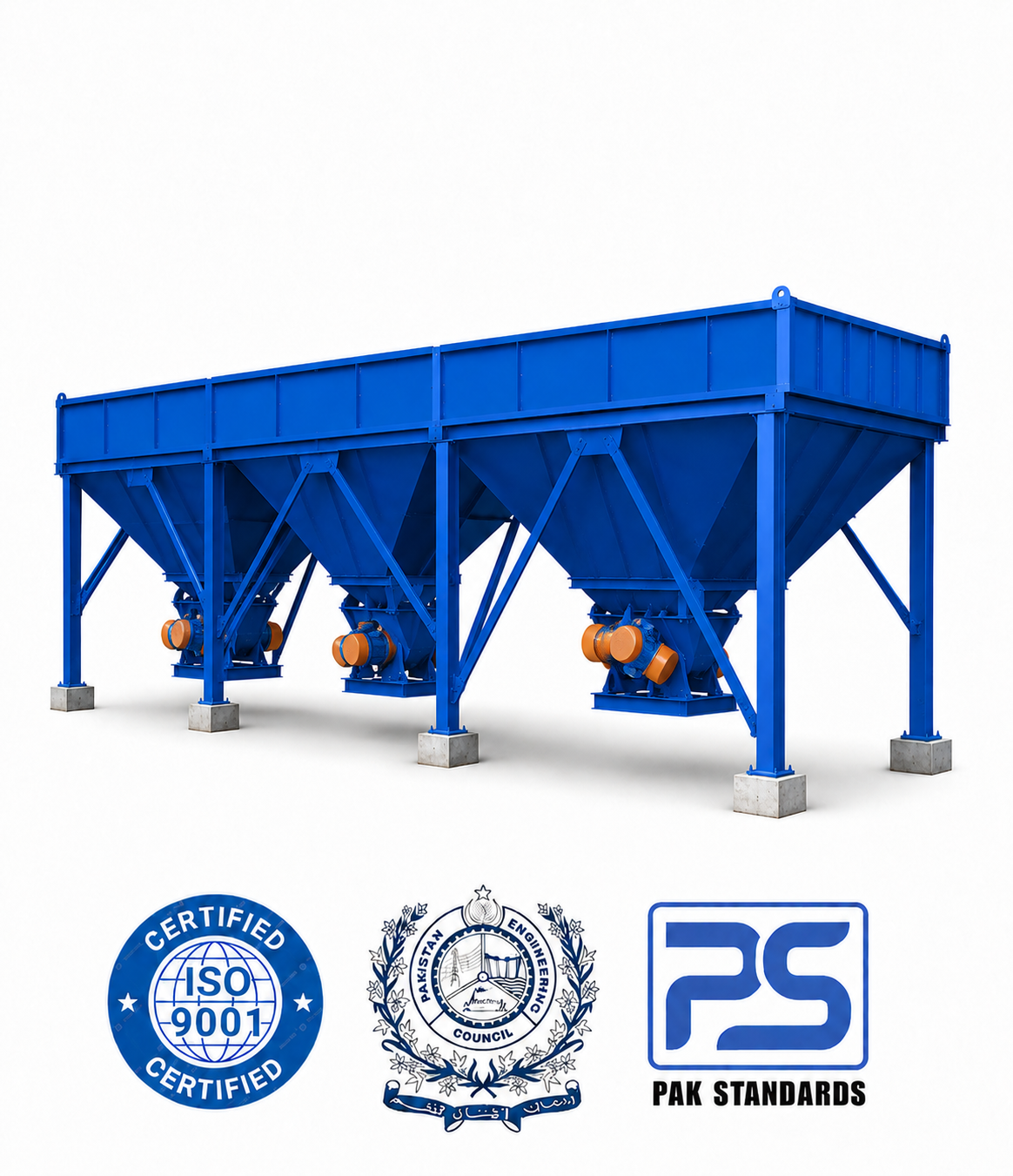

Bin Vibrators
Bin Vibrators are industrial vibration devices used in aggregate bins, hoppers, silos, feeders, and asphalt/concrete batching plants to ensure smooth material flow and prevent blockage, bridging, or sticking of materials. These vibrators help maintain continuous discharge of aggregates, sand, cement, and other bulk materials, improving plant efficiency and reducing downtime. Designed with heavy-duty steel construction and reliable vibration motors, Bin Vibrators are suitable for continuous operation in harsh industrial environments.
Pak Standards Centre Material Lab Testing & Equipment provides high-quality Bin Vibrators for asphalt plants, concrete batching plants, and industrial material handling systems across Pakistan. Our equipment is manufactured according to international quality standards and is suitable for laboratory, industrial, and construction applications.
Technical Details
Main Features
- Heavy-duty industrial vibrator motor
- Strong vibration force for smooth material flow
- Prevents material blockage and bridging
- Suitable for continuous industrial operation
- Durable steel body construction
- Low maintenance design
- Easy installation on bins and hoppers
- Weather-resistant industrial coating
- Energy-efficient performance
- Compatible with asphalt and concrete batching plants
Size & Capacity
| Model Type | Power Range | Voltage | Frequency | Capacity Application |
|---|---|---|---|---|
| Small Bin Vibrator | 0.25 – 0.75 kW | 220V / 380V | 50Hz | Small hoppers & feeders |
| Medium Bin Vibrator | 1 – 2 kW | 380V | 50Hz | Aggregate bins |
| Heavy Duty Bin Vibrator | 3 – 5 kW | 380V / 440V | 50Hz | Asphalt & concrete plants |
Usage Applications
- Asphalt Mixing Plants
- Concrete Batching Plants
- Aggregate Storage Bins
- Cement Silos
- Sand & Gravel Handling
- Industrial Feeders
- Material Discharge Systems
- Mining & Crushing Plants
- Construction Material Handling
- Industrial Processing Units
Working Principle
Bin Vibrators work by generating controlled mechanical vibrations through an electric motor with adjustable eccentric weights. These vibrations transfer to the hopper or bin wall, reducing friction between materials and surfaces. As a result, materials flow freely without clogging or arching, ensuring uninterrupted operation of the plant or feeding system.
Advantages
- Improves material discharge efficiency
- Reduces plant downtime
- Prevents clogging and material bridging
- Enhances batching accuracy
- Long service life
- Easy maintenance
- Industrial-grade performance
- Reliable operation in harsh conditions
